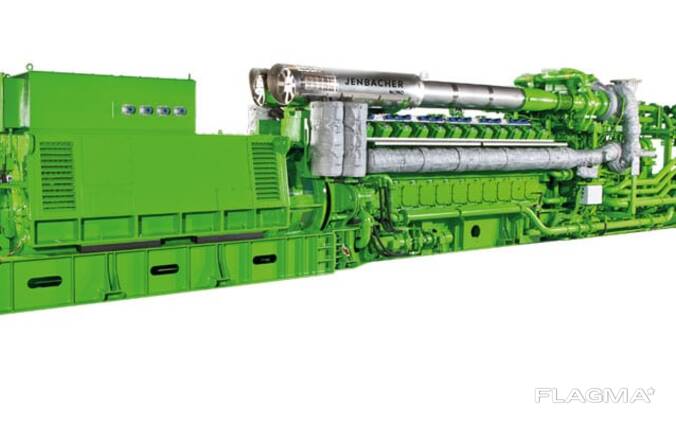

2* JENBACHER gas gensets engine type JMS 624 GS-NL, 4.4 MW power (4400 kW) 50Hz

02 units used JENBACHER J624 model gas genset for production of electricity composed of:
JENBACHER gas Motor type JMS 624 GS-NL, 4.4 MW power (4400 kW), 1500 rpm, 24 cylinder, bore 190 mm x stroke 220 mm,
year 2012, total running hours approx. 45000 (approx. 5000 starts),
rated power 4401 KW (4,4 MW), rated frequency 50 Hz, rated voltage 6600 V, rated current 385 A,
AVK generator / alternator type DIG 142 1/4,
ABB / DIESTRE transformer type DOC 5.500/17.5 to transform the output tension of the generator to 15000 V,
EVAPCO chiller type LRW 30-5H,
LUWA chiller type EKV 7676/1824-4/2-2/2,
installation supplied with auxiliaries and electrical panels ready to work.
+
1 JENBACHER gas genset for production of electricity composed of:
JENBACHER gas Motor type JMS 624 GS-NL, 4.4 MW power (4400 kW), 1500 rpm, 24 cylinder, bore 190 mm x stroke 220 mm,
year 2012, total running hours approx. 38000 (approx. 5100 starts),
rated power 4401 KW (4,4 MW), rated frequency 50 Hz, rated voltage 6300 V, rated current 403 A,
AVK generator / alternator type DIG 142 1/4,
ABB / DIESTRE transformer type POV 5.000/17.5 to transform the output tension of the generator to 15000 V,
EVAPCO chiller type LRW 30-5H,
LUWA chiller type EKV 8436/1824-4/3-3/3,
installation supplied with auxiliaries and electrical panels ready to work.

Jenbacher J624 :
A two-stage turbocharged V24-cylinder engine delivering outstanding power generation. The biggest engine in Type 6 family with the highest power output and efficiency.
