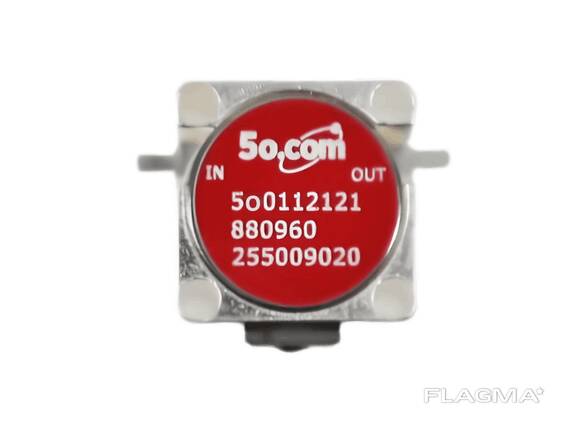

0.7–6.0GHz Drop-in Isolator for Modern Wireless Systems

Model Number: 5o0112121
Frequency Range:0.7–6.0GHzMHz
Insertion Loss: 0.3dB
Isolation:18dB
VSWR:1.2
Forward Power:60W
Reverse Power:20W
Connector Type: TAB
Temperature:-20~+60℃
Dimension:12.7*12.7*8mm
Impedance:50Ω
Brand

Application Areas
This versatile isolator is engineered to meet the demands of various high-performance applications:
Wireless Infrastructure: Protects power amplifiers in 4G/LTE and 5G base stations from antenna mismatch and load variations.
Satellite Communications: Ensures signal integrity in both uplink and downlink systems operating within Ku- and C-band frequencies.
Military & Radar Systems: Provides critical isolation in tactical radios, radar, and electronic warfare equipment.
Public Safety Networks: Supports reliable operation in emergency communication systems.
Test & Measurement: Safeguards signal sources and analyzers during RF testing and validation.
